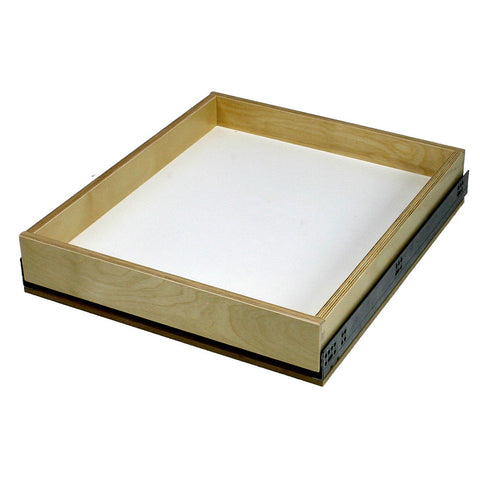

RENO - Narrow Width Solo Roll-out Drawer Kit (Up to 20" Width)

RENO - Narrow Width Solo Roll-out Drawer Kit (Up to 20" Width)

  • $ 114.00

Important: Please provide the exact interior dimensions of your drawer (width, depth, and height). We will automatically subtract 1/16" from the width, depth, and height to ensure a proper fit even accommodating for protruding screw heads. Note that our inserts do have a maximum height. For more details, refer to the information below.

Speeding truck Free Shipping Ribbon Easy Returns

Solo Roll Drawer Kits are meant to be mounted to your cabinet floor or any full depth fixed secured cabinet shelf.

Kits come fully assembled and require fastening to cabinet deck or shelf with 6 screws (included). Install should take 5-10 minutes per kit.

Kit includes:

  • 1 Roll-out drawer with 3/8" thick base panel with Blum Soft close undermount slides attached.
  • Qty. 6 -  1 1/4" truss head screws.
  • Installation instructions.

Standard Features:

  • Assembled 5/8” thick birch plywood (11 ply) drawer sides.
  • Dovetail joint construction drawer box.
  • Durable UV clear coat finish.
  • Easy clean ¼” White melamine bottom finish.
  • Custom sized widths to fit your cabinets.
  • Soft close under mount drawer slides with 100# rating. attached to 3/8" base panel.

Optional Features:

  • Lateral or front to back dividers available in quantities 1-4.  Additional dividers available upon request at additional charge.

Dimensions:

  • Overall Unit Height Clearance: 3" Dwr. = 3 3/4", 6" Dwr. = 6 3/4", 8" Dwr. 8 3/4".
  • Unit Depth Clearance: -15 3/4", 18 3/4", 21 3/4"
  • Base platform is 15/32" wider than drawer box outer dimension.
  • Actual drawer box depths (front to back) are 15", 18" and 21". So 3/4" less than your Depth Selection.

Measure and Installation Notes:

  • For Width dimension entry, be sure to enter opening width minus any hardware or cabinet door protruding into opening space. We will subtract an additional 1/8" for proper clearance.
